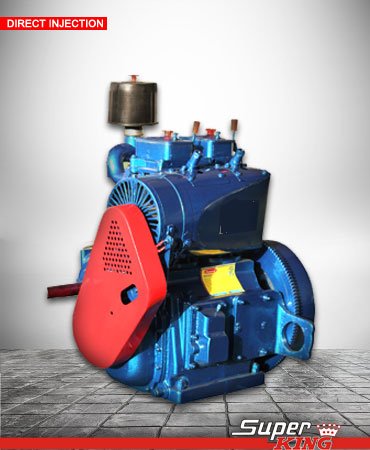

Prime mover for agricultural, industrial & power generation equipments.
Available in - Bearing/Bush Type (4, 5, 6, 6.5, 7.5, 8, 9, 10, 12 HP)
Combination of taper roller bearing/bush bearing with plunger type lubricating oil pump & big gear cover (cast iron).
Rotation: Clockwise (While Facing The Flywheel). Anti clock-wise can be made available.
Governing: Mechanical, Centrifugal Type, Class B1 (Class A2 can be made available).
TYPE
Vertical acting, compression ignition, four stoke cycle, cold starting diesel engine.
COMBUSTION
Direct combustion chamber in piston.
FUEL SYSTEM
Fuel is supplied to the fuel pump by gravity feed from the fuel tank through fuel filter.
LUBRICATION
Main bearings are lubricated by plunger type oil pump & other working parts are splash lubricated.
COOLING
Engine cooling is arranged through cold air forced by axial fan diven by V-belt through a stream–lined cowling.
MOST IMPORTANT NOTE
Engine will give best performance & maximum efficiency at 32° C ambient temperature provided that sufficient surrounding space and proper flow of fresh cold air is maintained.
STANDARD EQUIPMENTS
Starting handle oil can, screw driver, spanner set (5pcs.) tool bag & manual book.
OPTIONALS
Three bearings (TRB), steel gears, dynamo with bulbs, big fuel tank (Separate), half speed drive, long crankshaft (solid /triangular flange type), long extension shaft, various sized v-groove/flat/drum/pulleys, tractor type big exhaust silencer & air cleaner, variable speed lever, anti vibration mounting pads, m.s. base frame/4 wheel trolly/rubber coupling/tyre type coupling (for pumpset/heavy pumpset/genset purpose).
APPLICATION
Pumpsets, self priming pumpsets, mud pumpsets, gensets, multi-crop threshers, chaff cutters, maize ∓ rice hullers, mini rice plants, sugarcane crushers, corn grinding mills, cement concrete mixers, construction hoist, mining, air-compressors, borewell air-pumps etc.
| Sr. No. | Rated Output HP(kW) | Rated Speed (RPM) | No. of Cyl. | Boire x Stroke(mm) | Cubic Cap (cc) | Max. Torque on Crankshaft At Full Load NM (kgm) | Specific Fuel Consumption At Full load (SFC) | Weight | Packing Dimension L x B x H (cms) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| g / kWh | g / bhph | Nett (kgs) | Gross (kgs) | ||||||||
| 1. | 12(8.8)) | 1000 | 1 | 127 x 139.7 | 1770 | 84.37(8.60) | 268 | 197 | 390 | 515 | 104 x 84 x 120 |
| 2. | 10(7.35) | 900 | 1 | 127 x 139.7 | 1770 | 78.10(7.96) | 268 | 197 | 390 | 515 | 104 x 84 x 120 |
