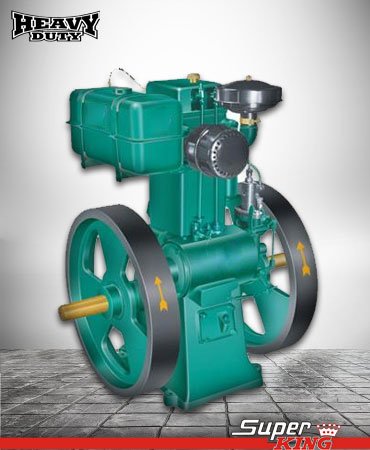

Prime mover for agricultural, industrial & power generation equipments.
Available in - Bearing/Bush Type (8 & 12 HP)
ROTATION: Clockwise (While Facing The Fuel Filter)
GOVERNING: Mechanical, Centrifugal Type, Class B1
TYPE
Vertical, single acting, compression ignition, four stoke cycle, cold starting diesel engine.
COMBUSTION
Pre-combustion chamber in cyclinder head.
FUEL SYSTEM
Fuel is supplied to the fuel pump by gravity feed the fuel tank through fuel filter.
LUBRICATION
Main bearings are lubricated by plunger type oil pump & other working parts are splash lubricated.
COOLING
Engine cooling is arranged for run-through water supply/radiator cooling system/overhead water tank.
MOST IMPORTANT NOTE
To get maximum efficiency & best performance of engine, the temperature of cooling water coming out from engine head should be between 60 to 70 C. Kindly run the engine at this water temperature only.
STANDARD EQUIPMENTS
Starting handle, oil can, screw driver, spanner, set (5 pcs), flat pulley (10"x5"x2"), foundation bolts, tool bag & manual book.
OPTIONALS
Direct injection (DI), Three bearings (TRB), Aluminium, Piston, Water circulating pump, radiator cooling system, dynamo with bulbs, big fuel tank (separate), tractor type big exhaust silencer, base frame (for pumpost/genset purpose), various sized v-groove/flat pulleys.
APPLICATION
Pumpets, gensets, turbine pumps, multi–crop threshers, maize & rice hullers, rice plants, sugargane crushers, flours mills, saw mills, pulverizers, marble & granite cutting machines, stone crushes, coffee processing machines (plant), oil expellers, minning, borewell air-pumps etc.
| Sr. No. | Rated Output HP(kW) | Rated Speed (RPM) | No. of Cyl. | Boire x Stroke(mm) | Cubic Cap (cc) | Max. Torque on Crankshaft At Full Load NM (kgm) | Specific Fuel Consumption At Full load (SFC) | Weight | Packing Dimension L x B x H (cms) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| g / kWh | g / bhph | Nett (kgs) | Gross (kgs) | ||||||||
| 1. | 12(8.8)) | 1000 | 1 | 127 x 139.7 | 1770 | 84.37(8.60) | 268 | 197 | 390 | 515 | 104 x 84 x 120 |
| 2. | 10(7.35) | 900 | 1 | 127 x 139.7 | 1770 | 78.10(7.96) | 268 | 197 | 390 | 515 | 104 x 84 x 120 |
